Please see a PDF-file of the individual product brochure here:
| Type | GfmO 10,5/2,5 4 Pol | GfmO 10,5/5 4 Pol | GfmO 10,5/7,5 4 Pol | GfmO 10,5/10 4 Pol | |
| Rotation speed | (U/min) | 4000 3000 2000 | 4000 3000 2000 | 4000 3000 2000 | 4000 3000 2000 |

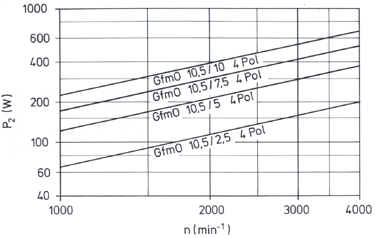

| Performance | (W) | 200 160 115 | 360 300 220 | 520 420 310 | 680 550 400 |
| Torque moment | (Nm) | 0,48 0,51 0,55 | 0,86 0,95 1,05 | 1,24 1,34 1,48 | 1,62 1,75 1,91 |
| Available voltages | (V) | 12-80 12-80 12-80 | 12-80 12-80 12-80 | 12-80 12-80 12-80 | 36-80 24-80 12-80 |
On request you can obtain ESTAN motors with B-side built-on spring pressure brake, tacho generator, transmitter, optional also combined with brake and tacho.
Please request our detailed individual product brochure.
